Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction

1
MOQ
USD96-9798 Per Piece
цена
Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Название продукта: Обвайзер клетки резиновый
Материал: Натуральный каучук
Высота: от 400 до 3000 мм
Использование: Судно, док, причал, порт, причал
Аксессуары: Передняя панель, лицевая подкладка, цепь..
Позволенный OEM: Да
Сертификация: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Гарантия: 24 месяца
Выделить:

Cell Rubber Fender high energy absorption

,

Cell Rubber Fender drum structure

,

Cell Rubber Fender low hull reaction
Основная информация
Место происхождения: Китай
Фирменное наименование: Hongruntong Marine
Сертификация: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Номер модели: ХМ-CRF6
Оплата и доставка Условия
Упаковывая детали: Деревянный поддон, Деревянный ящик
Время доставки: 5-8 рабочих дней
Условия оплаты: LC,D/A,D/P,T/T,Western Union,MoneyGram
Поставка способности: 2680 ПК в месяц
Характер продукции
Drum Type Rubber Fender Optimized Drum Structure Low Hull Reaction High Compression Resistance
Product Overview

Cell Rubber Fender is a heavy-duty marine berthing protection system designed for high-energy absorption applications in modern ports, terminals, and offshore structures. It consists of a robust cylindrical rubber body combined with a reinforced steel frontal panel and ultra-high molecular weight polyethylene (UHMW-PE) face pads.

Manufactured using high-grade natural rubber and synthetic compounds, the system delivers excellent mechanical strength, elasticity, and long-term durability. It is engineered to withstand continuous impact loading, compression cycles, and harsh marine environments including saltwater corrosion, UV exposure, and temperature variations.

Case Study: Deep-Water Coal Terminal Protection Upgrade

A large deep-water coal terminal in South America experienced increasing operational risks due to the expansion of vessel sizes, with bulk carriers exceeding 180,000 DWT frequently docking at the facility. The existing fender system was unable to cope with higher impact energy, resulting in structural stress on the quay wall and increased maintenance costs.

Hongruntong Marine provided a customized Cell Rubber Fender solution specifically engineered for high-energy bulk cargo operations. After implementation, the terminal achieved a significant improvement in operational safety, reducing structural stress on the quay by more than 35% and eliminating vessel damage incidents.

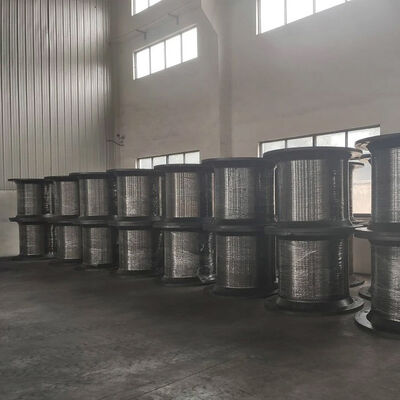

Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction 0

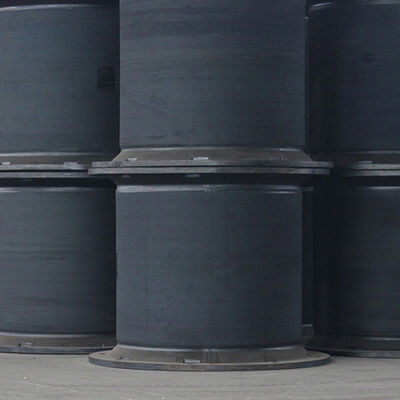

Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction 1
Technical Specifications
Product Name Cell Rubber Fender
Brand Name Hongruntong Marine
Material High Quality Natural Rubber
Reaction Force 29-4626KN
Energy Absorption 4-6102KNM
Hardness ≤82 Shore A
Standard PIANC2002, HGT2866-2016
Processing Service Moulding, Cutting
Lifespan 15-20 Years
Service OEM or ODM
Features Strong, Robust, Well Proven Design
Application Port, Dock, Quay, etc
Model Specifications
Model H [mm] h [mm] D1 [mm] D2 [mm] n-t [mm]
CF-C400H 400 25 650 550 30
CF-C500H 500 25 650 550 32
CF-C630H 630 30 840 700 39
CF-C800H 800 30 1050 900 40
CF-C1000H 1000 35 1300 1100 47
CF-C1150H 1150 40 1500 1300 50
CF-C1250H 1250 45 1650 1450 53
CF-C1450H 1450 47 1850 1650 61
CF-C1600H 1600 50 2000 1800 61
CF-C1700H 1700 55 2100 1900 66
CF-C2000H 2000 55 2200 2000 74
CF-C2250H 2250 60 2550 2300 74
CF-C2500H 2500 70 2950 2700 90
CF-C3000H 3000 75 3350 3150 90
Key Features
Ultra-High Energy Absorption Capacity for Heavy-Duty Berthing

Cell Rubber Fenders are engineered to handle extremely high berthing energies generated by large vessels such as bulk carriers, container ships, and LNG tankers. The cylindrical cell structure allows controlled deformation under pressure, converting kinetic energy into elastic energy efficiently.

Advanced Rubber Compound with Long-Term Stability

The rubber formulation used in Cell Rubber Fenders is developed using a carefully controlled mix of natural rubber and synthetic elastomers. This ensures excellent resistance to compression set, fatigue cracking, and environmental degradation.

Reinforced Structural Design for Maximum Load Distribution

The integration of a steel frontal panel significantly enhances load distribution across the fender system. This design minimizes localized stress concentrations on both the fender and quay wall, reducing the risk of structural damage.

Engineering Flexibility and Project Customization Capability

Each Cell Rubber Fender system can be fully customized based on project-specific requirements, including energy absorption capacity, size, mounting configuration, and environmental conditions.

Applications
  • Deep-Water Bulk and Container Terminals: Widely used in deep-water ports handling large bulk carriers and container vessels
  • Offshore Energy and LNG Infrastructure: Provide critical protection for high-value assets in offshore oil, gas, and LNG facilities
  • Heavy Industrial and Mining Ports: Deliver reliable performance under continuous high-load operations for ports handling coal, ore, and other heavy materials
Why Choose Hongruntong Marine
  • Deep Engineering Expertise: Extensive experience in designing high-performance fender systems for complex marine environments
  • High-Level Manufacturing Precision: Advanced molding, vulcanization, and testing systems with strict quality control procedures
  • Customized Engineering: Fully tailored solutions based on vessel type, berthing energy, quay structure, and environmental conditions
  • Long-Term Partnership: Comprehensive technical support including installation guidance, maintenance planning, and performance optimization
Frequently Asked Questions
What types of vessels are Cell Rubber Fenders suitable for?

They are suitable for a wide range of vessels, including container ships, bulk carriers, tankers, and LNG vessels, especially those requiring high-energy berthing protection.

How is energy absorption calculated for these fenders?

Energy absorption is determined based on vessel displacement, berthing velocity, and quay conditions. Our engineering team provides detailed calculations for each project.

Can the fenders be used in extreme marine environments?

Yes, they are designed for harsh environments including high salinity, strong UV exposure, and temperature extremes.

What maintenance is required?

Maintenance is minimal, typically involving periodic inspection of bolts, panels, and surface wear conditions.

How long is the typical service life?

Under normal operating conditions, Cell Rubber Fenders can last 15 years or more, depending on usage intensity and environment.

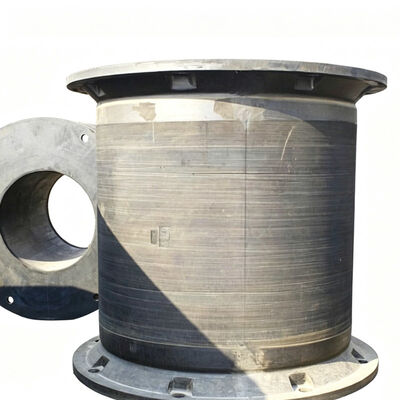

Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction 2

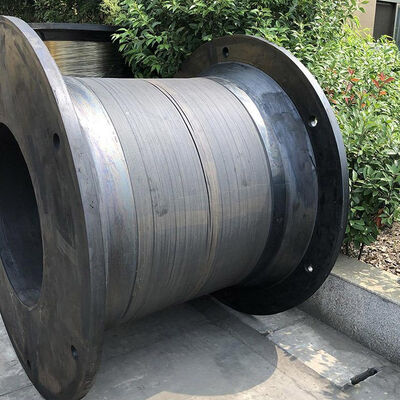

Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction 3
Cell Rubber Fender with High Energy Absorption Optimized Drum Structure and Low Hull Reaction 4
